AW119 Koala

Napisano na dan: 17.2.2019
1

AW119 Koala
Sledeća strana Pagination

Idi na vrh

Poslao: 17 Feb 2019 14:52
Idi na vrh
offline
  • Pridružio: 23 Nov 2010
  • Poruke: 104073

AW119 Koala
Највећа брзина: 267 km/h
Домет: 1.013 km
Тежина: 1.430 kg
Јединична цена: ~US$3.0M
Тип мотора: Pratt & Whitney Canada PT6
Произвођачи: AgustaWestland, Leonardo, Агуста

Wiki
Citat:Specifications (AW119Kx)
Data from AgustaWestland AW119Kx brochure

General characteristics

Crew: 1-2
Capacity: 6-7 passengers or 1,400 kg (3,086 lb) sling load
Length: 12.92 m (42 ft 5 in)
Height: 3.60 m (11 ft 10 in)
Empty weight: 1,483 kg (3,269 lb)
Max takeoff weight: 2,850 kg (6,283 lb)
Fuel capacity:
3-cell fuel system 605 l (160 US gal)
4-cell fuel system 711 l (188 US gal)
5-cell fuel system 870 l (230 US gal)
Powerplant: 1 × Pratt & Whitney Canada PT6B-37A turboshaft engine, 747 kW (1,002 hp)
Main rotor diameter: 10.83 m (35 ft 6 in)
Main rotor area: 92.1 m2 (991 sq ft)

Performance

Cruise speed: 244 km/h (152 mph; 132 kn)
Never exceed speed: 282 km/h (175 mph; 152 kn)
Range: 954 km (593 mi; 515 nmi)
Endurance: 5 h 20 min
Service ceiling: 4,572 m (15,000 ft)
Rate of climb: 9.1 m/s (1,790 ft/min)
[Link mogu videti samo ulogovani korisnici]


Armament
Rocket launcher 7/12/19 tubes 70 mm
Twin machine gun-pod 7.62 mm
Machine gun-pod 12.7 mm
Machine gun-pod 12.7 mm with 3 tubes 70 mm rockets
Antitank missiles (TOW, HOT or Hellfire)
Air-to-air missiles (Stinger or Mistral)
[Link mogu videti samo ulogovani korisnici]

Korisnici
Citat:Operators
Algeria
Algerian Air Force
Australia
Westpac Rescue Helicopter Service
Bangladesh
Bangladesh Air Force
Brazil
State of Goiás
State of Santa Catarina
State of Rio Grande do Sul
Finland
Finnish Border Guard
South Korea
National Police Agency
Latvia
State Border Guard (2 on order)
Malaysia
An AW119 of Schenk Air
Weststar General Aviation
Mexico
Mexico State Government
Portugal
Portuguese Air Force (5 on way)
United States
New York City Police Department
Phoenix Police Department
Najnoviji korisnik je Izrael

^^^ВВС получат 7 вертолётов AW119 Koala
Arrow [Link mogu videti samo ulogovani korisnici]
Portugalu isporucena prva dva sa kojim ce zameniti SE3160 Alouette 3

Citat:On 16 February 2019, the Força Aerea Portuguesa (FAP, Portuguese Air Force) took delivery of a new type in its inventory.
On the 16th, the first two (serial 29701 construction number 14959 and 29702 c/n 14960) of five ordered Leonardo AW119Kx Koala helicopters have arrived at Beja air base (Portugal). The new type will replace the veteran SE3160 Alouette 3 within Esq552 Zangões (Drones).
The AW119s will take over the Alouette 3 tasks, being basic and advanced flight instruction, search and rescue, sanitary evacuation, patrol and observation. On top of these, the modern AW119s are able to execute night operations as well as bambi bucket support during firefighting operations.
The current FAP inventory only has three Alouette 3s left in operational service.
[Link mogu videti samo ulogovani korisnici]
Neki korisnici


Arrow [Link mogu videti samo ulogovani korisnici]
Arrow [Link mogu videti samo ulogovani korisnici]
Arrow [Link mogu videti samo ulogovani korisnici]


TH-119

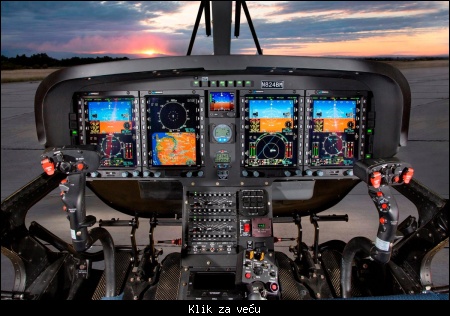

Citat:Based on the AW119Kx , the Leonardo TH-119 is a single engine IFR light helicopter first introduced at the Navy League Sea-Air Space Exhibition in Washington DC on May 2016. Fitted with Genesys Aerosystems avionics and a Pratt & Whitney PT6-B engine.
Is the company proposal for the US Navy new trainer helicopter to replace the TH-57 Sea Ranger and to be produced (if wins) by AgustaWestland Philadelphia. Main contender will be the Airbus H135.
Two prototypes converted from AW119Kx unveiled in 2016 and 2017. First IFR equipped TH-119, a converted AW119Ke, performed maiden flight on December 20, 2018. IFR certification expected early 2019.
[Link mogu videti samo ulogovani korisnici]


Helikopterski servis Republike Srpske nabavio helikopter AW119 “Koala“
Arrow [Link mogu videti samo ulogovani korisnici]



Arrow [Link mogu videti samo ulogovani korisnici]



Registruj se da bi učestvovao u diskusiji. Registrovanim korisnicima se NE prikazuju reklame unutar poruka.
Poslao: 17 Feb 2019 15:23
Idi na vrh
offline
  • Pridružio: 19 Nov 2017
  • Poruke: 303

HSRS





Poslao: 19 Feb 2019 17:05
Idi na vrh
offline
  • Pridružio: 23 Nov 2010
  • Poruke: 104073

Isporuka prva dva za Portugal


Arrow [Link mogu videti samo ulogovani korisnici]
Arrow [Link mogu videti samo ulogovani korisnici]

Poslao: 28 Feb 2019 00:18
Idi na vrh
offline
  • Pridružio: 23 Nov 2010
  • Poruke: 104073

Leonardo nears IFR approval for TH-119 US Navy trainer bid
Citat:Leonardo Helicopters is closing in on instrument flight rules (IFR) certification for the TH-119 light-single it is pitching for a 130-unit deal with the US Navy.

“We are almost through with company testing having completed more than 95% of the flight-test plan without any issues.
Arrow [Link mogu videti samo ulogovani korisnici]

Poslao: 03 Apr 2019 14:36
Idi na vrh
offline
  • Pridružio: 23 Nov 2010
  • Poruke: 104073

^^Zvanicno ucesce za tender americke mornarice
Citat:Leonardo has officially submitted the TH119 to the USNavy for its TH-XX Advanced Helicopter Training System.
Arrow [Link mogu videti samo ulogovani korisnici]

Poslao: 05 Apr 2019 21:25
Idi na vrh
offline
  • Pridružio: 30 Jun 2007
  • Poruke: 6299
  • Gde živiš: Novi Sad, severoistočna Srbija

Poslao: 16 Apr 2019 14:32
Idi na vrh
offline
  • Pridružio: 23 Nov 2010
  • Poruke: 104073

Ekvador pazario cetiri komada kao zamena za Dhruv
Tri im isporucili do sada
Citat: ВВС Эквадора получили три вертолета AW-119 «Коала»
Командование ВВС Эквадора получило три из четырех недавно заказанных у группы Leonardo вертолетов AW-119 «Коала», предназначенных для замены индийских «Дхрув», снятых с вооружения.
[Link mogu videti samo ulogovani korisnici]

Poslao: 28 Maj 2019 22:17
Idi na vrh
offline
  • Pridružio: 23 Nov 2010
  • Poruke: 104073

TH119

[Link mogu videti samo ulogovani korisnici]

Poslao: 16 Okt 2019 10:05
Idi na vrh
offline
  • Pridružio: 23 Nov 2010
  • Poruke: 104073

djox ::Ekvador pazario cetiri komada kao zamena za Dhruv
Tri im isporucili do sada
Citat: ВВС Эквадора получили три вертолета AW-119 «Коала»
Командование ВВС Эквадора получило три из четырех недавно заказанных у группы Leonardo вертолетов AW-119 «Коала», предназначенных для замены индийских «Дхрув», снятых с вооружения.
[Link mogu videti samo ulogovani korisnici]
Isporucen i cetvrti
Citat:ВВС Эквадора приступили к эксплуатации четырех вертолетов AW-119Ke
ВВС Эквадора приступили к эксплуатации полученных в этом году четырех вертолетов AW-119Ke «Коала» группы Leonardo, предназначенных для замены снятых с вооружения индийских «Дхрув».
[Link mogu videti samo ulogovani korisnici]

Poslao: 03 Dec 2019 11:04
Idi na vrh
offline
  • Pridružio: 23 Nov 2010
  • Poruke: 104073

^^Ekvador
