AIM-9 Sidewinder

• 0Niko još nije pohvalio poruku.
  Registruj se da bi pohvalio/la poruku!

Jet-vanes direktno vezani za kormila, najprostija moguća izvedba kombinovanog upravljanja.

• 0Niko još nije pohvalio poruku.
  Registruj se da bi pohvalio/la poruku!

Ovo je na ivici genijalnog. I kako su održali stabilnost? Žiroskopom i nekim kontrolerima?

• 0Niko još nije pohvalio poruku.
  Registruj se da bi pohvalio/la poruku!

Kao raketa, Sidewinder X poseduje inercijalnu platformu a microkontroleri su valjda u sklopu svakog elektro pokretača kormila.

• 0Niko još nije pohvalio poruku.
  Registruj se da bi pohvalio/la poruku!

Jubilarna isporuka za amere
US Air Force receives 10,000th AIM-9X Sidewinder missile
https://fuentitech.com/us-air-force-receives-10000.....le/104843/

• 0Niko još nije pohvalio poruku.
  Registruj se da bi pohvalio/la poruku!

Nove narudzbine
US ordered 483 AIM-9X air-to-air missiles for domestic and foreign use
Citat:The order is worth nearly $ 328 million and covers products and services that will have to be produced for use by both US forces and foreign partners.

The order includes the name of Bulgaria, which means that the production of the first two F-16 Block 70/72 fighters is going according to plan, as the AIM-9X Block II is part of the armament of the Bulgarian fighters.

Apart from Bulgaria (and by default the USA), the other countries that will expect different models of missiles under this agreement are Australia, Bahrain, Belgium, Bulgaria, Canada, Denmark, Finland, Indonesia, Israel, Japan, Kuwait, Malaysia, Morocco, the Netherlands, Norway, Oman, Poland, Qatar, Romania, Saudi Arabia, Singapore, Slovakia, the Republic of Korea, Taiwan, Turkey, and the United Arab Emirates.
https://bulgarianmilitary.com/2021/07/01/us-ordere.....reign-use/

• 0Niko još nije pohvalio poruku.
  Registruj se da bi pohvalio/la poruku!

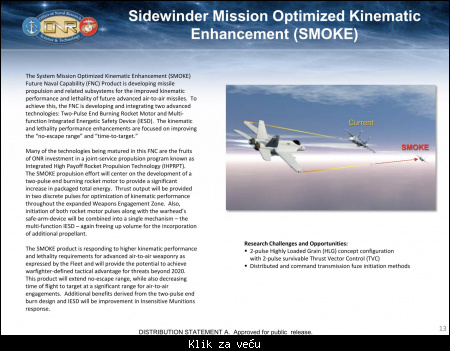

Dalji razvoj. Novi dvostepeni motor i jedan mehanizam koji aktivira motor i armira glavu. Dodatni prostor ce biti iskoriscen za jos goriva.



https://twitter.com/MIL_STD/status/1463948377448669193

Sta je do sada unapredjeno na AIM-9X

Citat:The AIM-9X Block II is the combination of AIM-9X-2 hardware and OFS 9.3 software.

AIM-9X-2 is the latest hardware version and is designed to prevent parts obsolescence and provide processing capability for the upcoming OFS 9.3 software upgrade. The AIM-9X-2 missile includes a new processor, a new ignition battery for the rocket motor, an electronic ignition safety/arm device, and the DSU-41/B Active Optical Target Detector (AOTD) fuze/datalink assembly.

Citat:AIM-9X-2 with OFS 9.2 provides similar capabilities as the currently fielded AIM-9X Block I, OFS 8.212.
OFS 9.3 is a software upgrade that will add trajectory management to improve range, datalink with the launching aircraft, improved lock-on-after-launch, target re-acquisition, and improved fuzing.

• 0Niko još nije pohvalio poruku.
  Registruj se da bi pohvalio/la poruku!

Italijani pazarili AIM-9X Block II za svoje F-35
Italian F-35s Will Get AIM-9X Block II Air-To-Air Missiles
https://theaviationist.com/2022/02/04/italian-f-35.....-missiles/

• 0Niko još nije pohvalio poruku.
  Registruj se da bi pohvalio/la poruku!

Holandjanima odobrena kupovina 72 AIM-9X Block II
https://www.dsca.mil/press-media/major-arms-sales/.....i-missiles
